General Details
| temperature range | -30 °C… +70 °C |
| Bending radius min. | 10 x D |
| Conductor resistance | 0,75 mm2 max. 26,0 Ω/km 1,0 mm2 max. 19,5 Ω/km 1,5 mm2 max. 13,3 Ω/km 2,5 mm2 max. 7,98 Ω/km |
| Insulation resistance min. | 20MΩx km |
| Test voltage | 0,75 mm2 1200 V 1,0 mm2 1200 V 1,5 mm2 2500 V 2,5 mm2 2500 V |
| Operating voltage max. | 300 V |
| Standards | TSE K 178, DIN VDE 0812 |
| fire performance | Vertical flame spread EN 60332-1-2 Corrosive gas EN 60754-1/2Smoke density EN 61034-2Current continuity IEC 60331-21 FE180Current continuity EN 50200 PH120 |
| EU declaration of conformity | LVD Low Voltage Regulation 2014/35/EU RoHS Restriction of Use of Certain Hazardous Substances 2011/65/EU |
Usage areas
It is used in the control and supply of devices that need to work during a fire. It is used in systems that need to maintain its function for a certain period of time (current continuity FE180 mechanical shock current continuity PH120), such as the operation of devices and equipment required for emergency lighting, monitoring and evacuation, and warning systems. The cable, which has a foil and braided screen, is protected against electromagnetic interference from the environment. Smart or semi-intelligent buildings, mass housing, hospitals, cinemas, theaters, where people are concentrated, especially in places that should not be affected by fire conditions, since halogen-free material is used in the cable structure. , schools, shopping malls, airports, factories etc. used in structures.

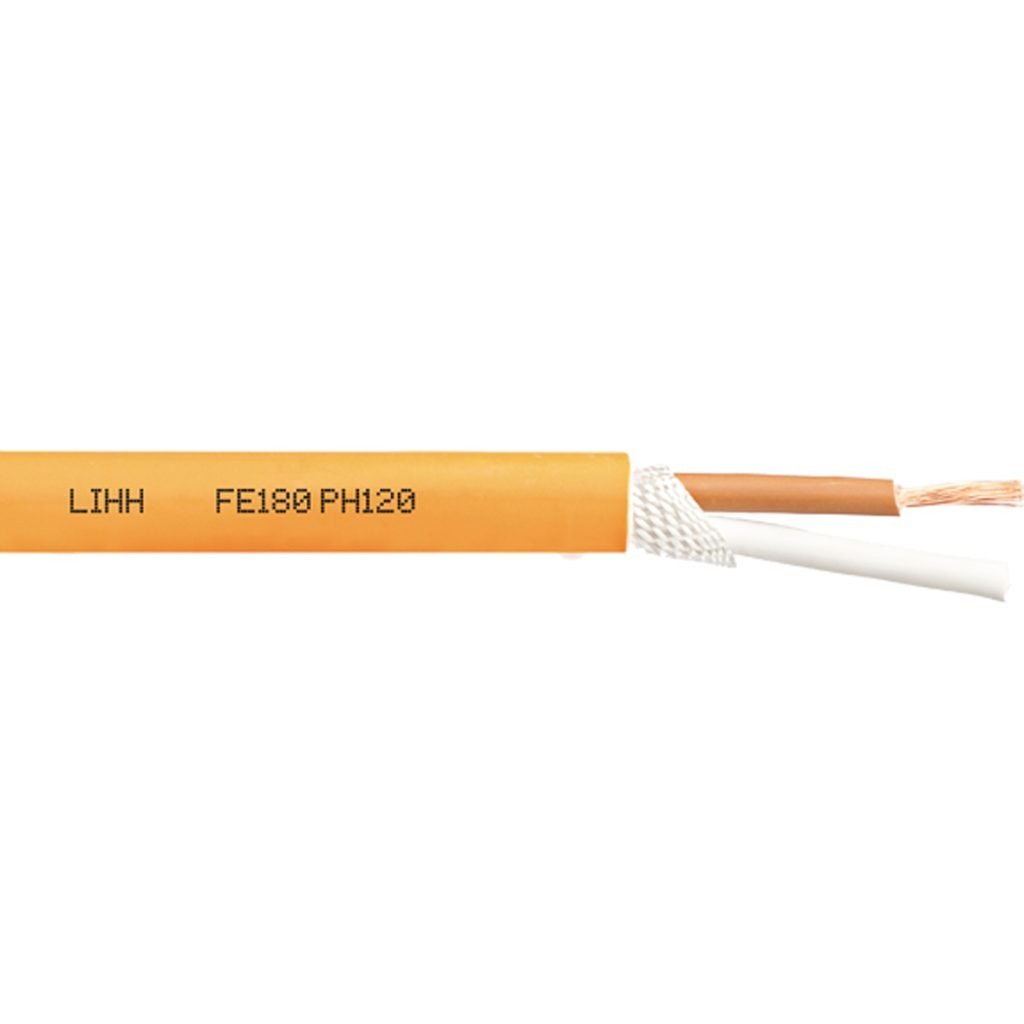

Cable Structure
| Conductive | Stranded copper wire, Class 5, IEC 60228 |
| Insulation | Halogen-free, cross-linked insulation, in accordance with DIN 47100 insulation color coding, EI8 EN 50363-5 |
| separator tape | Pet tape min. 100% coverage Glass fiber tape min.100% coverage |
| Screen | Al-Pet tape min. 100% coverage Tinned copper wire mesh |
| Sheath | HFFR, RAL 2003 Orange 70°C EN 50290-2-27 HM2 DIN VDE 0207-24 |
