N2XCH

CABLE STANDARDS:

TS IEC 60502-1, VDE 0276, IEC 60502-1

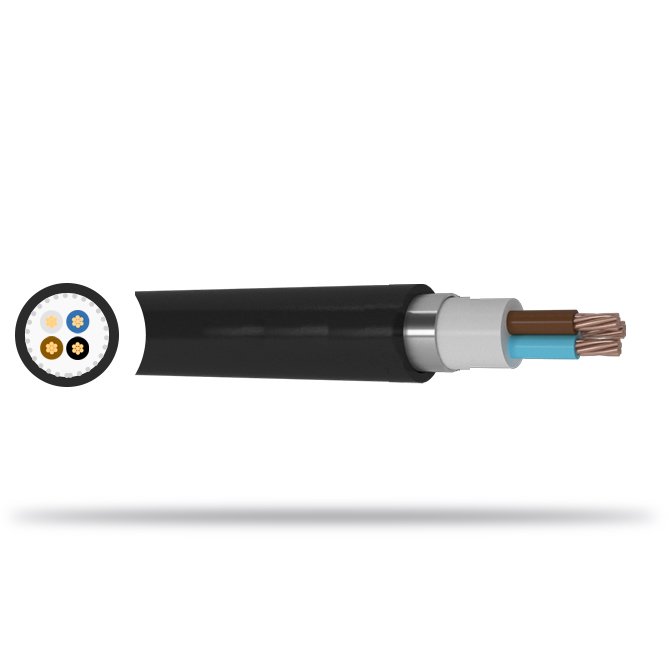

CABLE STRUCTURE:

  • Conductor: EN 60228 Class 1-2 Copper
  • İzole : XLPE VDE 0276-604 (HD 604) Tip 2X11
  • Fill : LSZH
  •  Screen: Concentric copper conductor and holding copper tape

         ● Sheath : LSZH Compound VDE 276-604 (HD 604) Type HM4

USAGE:

The concentric conductor on these cables, which are generally used in residential areas and underground, prevents the energy in the cable from harming the environment by opening the protection switch or fuse connected to the network during any mechanical impact.
